PMC-53A-E Ethernet Multifunction Meter
Device Introduction
- The PMC-53A-E Ethernet Multifunction Meter is CET's latest offer for the digital power/energy metering market. Housed in a standard DIN form factor measuring 96x96x88mm, it is perfectly suited for industrial, commercial and utility applications requiring direct Ethernet connectivity.
- The PMC-53A-E features quality construction, multifunction measurements and a large, backlit, Dot-Matrix LCD that is easy to navigate and user friendly. Compliance with the IEC 62053-22 Class 0.5S and ANSI C12.20 Class 0.2 Standards, it is a cost-effective replacement for analog instrumentation and is capable of displaying 4 measurements at once. It also optionally provides an I4 input for Neutral Current Measurement, one 0/4-20mA Analog Input for measuring external transducer signal as well as an Ir Input for Residual Current Measurement. With a standard 100BaseT Ethernet Port and a RS-485 port supporting multiple protocols.
- The PMC-53A E can be easily integrated into Energy Management Systems as well as Building and Utility Automation Systems. The on-board password protected Web Server provides user-friendly access to its data and supports the configuration for most of the Setup parameters via a standard web browser.
Product Highlight
- IEC62053-22 Class 0.5S
- DIN96 (92x92mm Cutout)
- Backlit Dot-Matrix LCD Display
- Harmonics, Demands & TOU, Energy Log, Max/Min Log and Event Log
- Waveform Capture on Screen
- Modbus RTU, TCP, HTTP, SNTP, SMTP, TFTP, BACnet, DNP3.0
- 1xEthernet, 1xRS-485
- 4xDI, 2xDO, 1xI4, 1xIr and 1xAI
Typical Application
- Industrial, Commercial and Utility Substation Metering
- Building, Factory and Process Automation
- Sub-metering and Cost Allocation
- Retrofit applications with optional Class 0.5 Split-Core CTs
Related Products

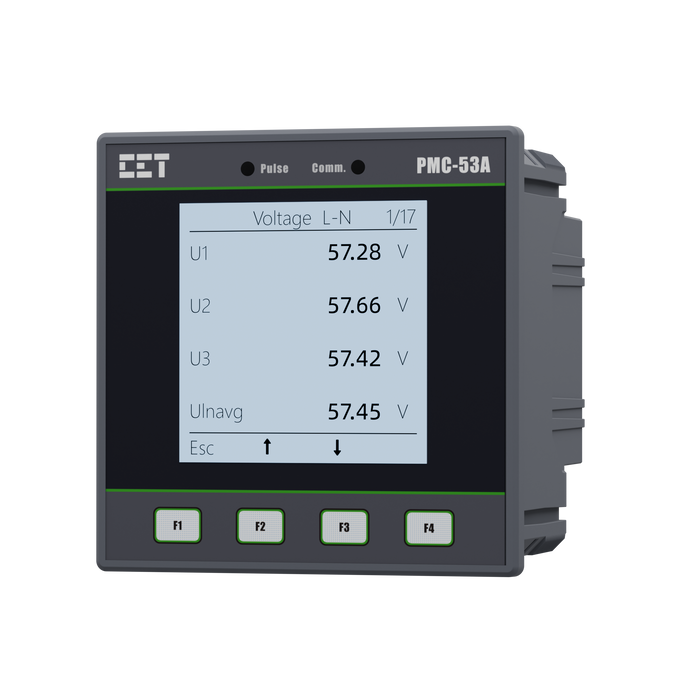

PMC-53A Intelligent Multifunction Meter

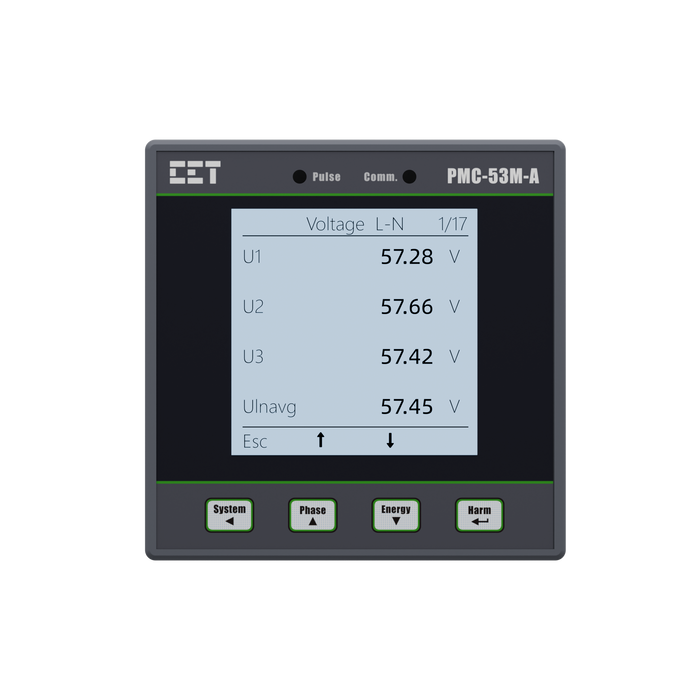

PMC-53M-A Digital Multifunction Meter

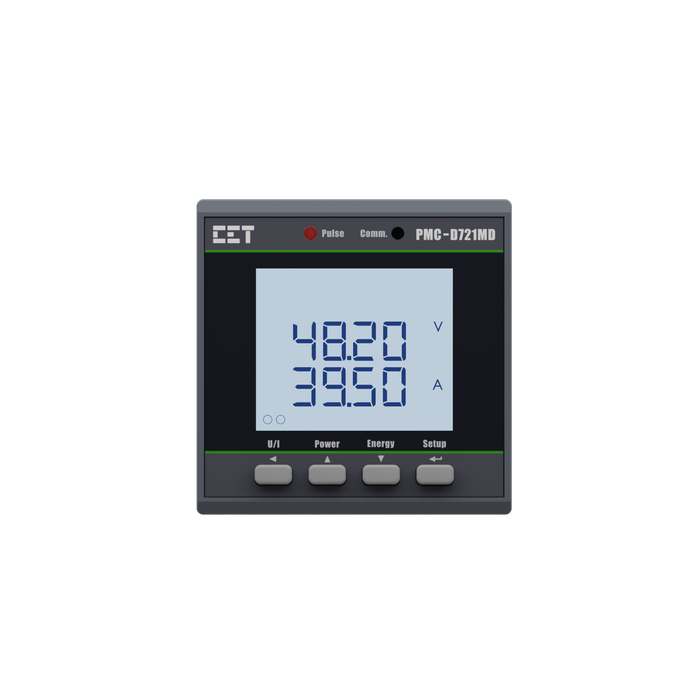

PMC-D721MD DC Multifunction Meter

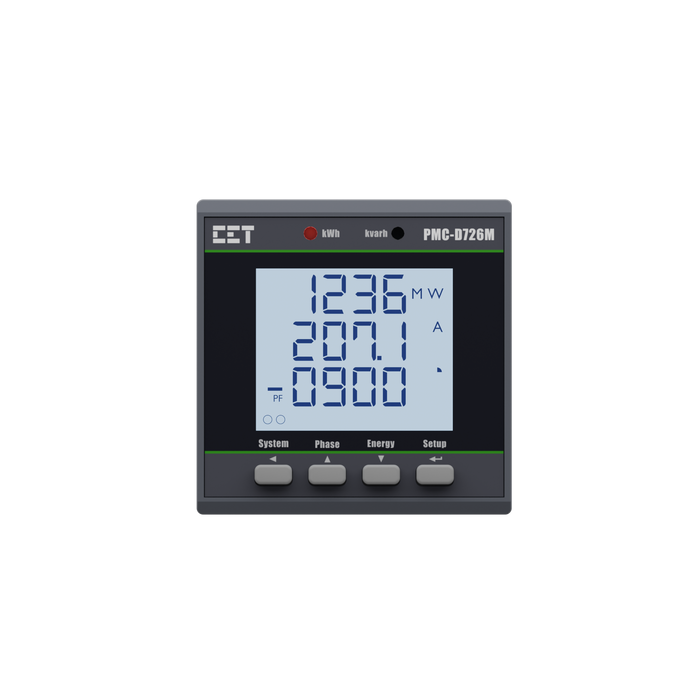

PMC-D726M Digital Multifunction Meter

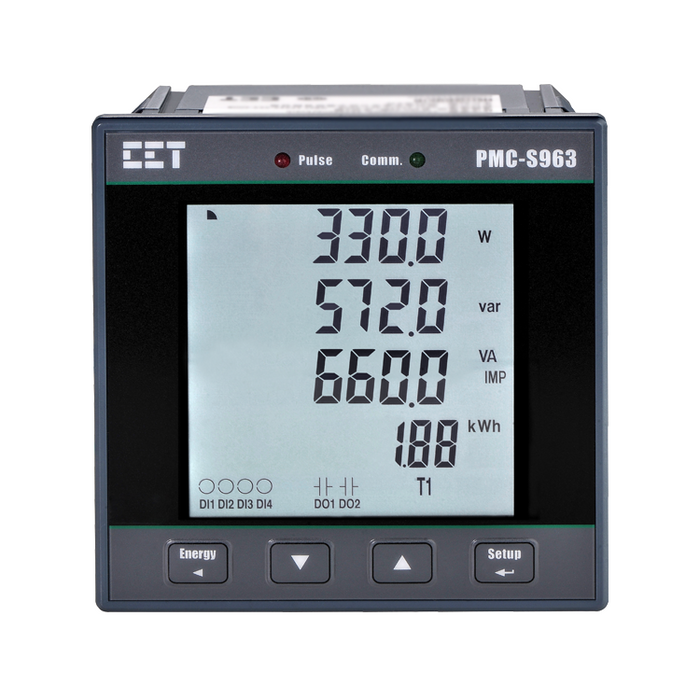

PMC-S963-C Intelligent Multifunction Meter
PMC-S963-E Intelligent Multifunction Meter
Related Solutions
Specification
Technical Specification
Voltage Inputs(V1,V2,V3,VN) | |
|---|---|
| Standard Un | 400ULN/690ULL |
| Range | 10V to 1.2Un |
| Overload | 1.2xUn continuous, 2xUn for 1 s |
| Burden | <0.02VA/phase |
| Measurement Category | CAT III up to 600ULL |
| Frequency | 45-65Hz |
Current Inputs(I11,I12,I21,I22,I31,I32) | |
| Standard In | 5A(Optional 1A) |
| SCCT Options | 100A/200A/400A/800A/1600A to 40mA Output |
| Range | 0.1% to 200%In |
| Starting Current | 0.1%In |
| Overload | 2xIn continuous, 20xIn for 1 s |
| Measurement Category | CAT III up to 600ULL |
| Burden | <0.15VA per phase@5A |
Power Supply(L+,N-) | |
| Standard | 95-250VAC/DC,±10%,47-440Hz |
| Optional | 20-60VDC |
| Burden | <3W |
| Overvoltage Category | CAT III up to 300VLN |
Digital Inputs(DI1,DI2,DI3,DI4,DIC) | |
| Type | Dry contact,24VDC internally wetted |
| Sampling | 1000Hz |
| Hysteresis | 1ms minimum |
Digital Outputs(DO11,DO12,DO21,DO22) | |
| Type | Form A Mechanical Relay |
| Loading | 5A@250VAC or 30VDC |
| Load Type | Resistive |
Pulse Outputs(E1+,E1-,E2+,E2-) | |
| Type | Form A Solid State Relay |
| Isolation | Optical |
| Load Type | Resistive |
| Output | Optocoupler output as ON-OFF |
| Max.Load Voltage | 50VDC |
| Max.Forward Current | 50mA |
Optional I4 Input(I41,I42) | |
| In | 5A (5A/1A Auto-Scaling) |
| Range | 0.1% to 120%In |
| Starting Current | 0.1%In |
Optional Residual Current Inputs(·IR,IR) | |
| In | 0.5mA |
| Range | 2% to 500%In |
| CT Type | Solid-Core or Split-Core Residual Current CT |
Optional Analog Input(AI+,AI-) | |
| Type | 0-20/4-20mA |
| Overload | 24mA maximum |
Installation Torque | |
| Current Inputs | 12 Ib-in(1.3N.m) |
| Power Supply,Voltage Inputs,RS-485 and I/O | 5 Ib-in(0.5N.m) |
Environmental Conditions | |
| Operating Temp. | -25 °C to + 70°C |
| Storage Temp. | -40 °C to + 85°C |
| Humidity | 5% to 95% non-condensing |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Altitude | <2000m |
| Pollution Degree | 2 |
| Location/Mounting | For indoor use only |
Mechanical Characteristics | |
| Panel Cutout | 92x92mm(3.62”x3.62”) |
| Unit Dimensions | 96x96x88mm |
| IP Rating | IP65(Front Panel), IP30(Body) |
Communications | |
| Protocol | Modbus RTU, Modbus TCP ,BACnet MS/TP, DNP3.0, Ethernet Gateway, SNTP, SMTP, TFTP |
| RS-485 Port | 1 |
| Ethernet | 1 |
| Web Server | √ |
Features Summary | |
| Display (Backlit) | Dot-Matrix LCD (Backlit) |
| Type of Measurement | ULN per Phase &Avg. ULL per Phase&Avg. Current per Phase &Avg. Neutral Current (Meas./Calc.) Frequency kW per Phase & Total kvar per Phase & Total kVA per Phase& Total PF per Phase& Total kWh lmport/Export kvarh Import/Export kVAh Total |
| Power Quality | THD Voltage & Current TOHD Voltage & Current TEHD Voltage & Current 2nd-31st Harmonics K-Factor Voltage/Current Unbalance |
| Battery-backed Real-time Clock | √ |
| Demands | Present , Predicted Demands and Max.Demands for This Month & Last Month |
| Multi-Tariff TOU capability | Two TOU schedules, each providing: 12 Seasons 90 Holidays 20 Daily Profiles, each with 12 Periods in 15-minute interval 8 Tariffs |
| Diagnostics | √ |
| Setpoints | 9 Setpoints |
Logs | |
| Max./Min.Log | This month & Last Month |
| Freeze Logs(Optional) | 60 Daily Freeze Logs, 36 Monthly Freeze Logs |
| Monthly Energy Log | 12 months |
| Data Recorder | 5 Data Recorders Max. Recording Depth @ 10000 records |
| SOE Log | 100 entries |
| On-board Log Memory | 8MB |
Accuracy
| Parameters | Accuracy | Resolution |
|---|---|---|
| Voltage | ±0.2% | 0.001V |
| Current | ±0.2% | 0.001A |
| I4(measurement) | ±0.2% | 0.001A |
| Ir(measurement) | ±0.5% | 0.001A |
| P,Q,S | ±0.5% | 0.001kx |
| kWh,kVAh | 5A/1A Option: IEC 62053-22 Class 0.5S ANSI C12.20 Class 0.2 SCCT Option: IEC 62053-21 Class 1 | 0.1kXh |
| kvarh | 5A/1A Option: IEC 62053-24 Class 0.5S IEC 62053-23 Class 2 SCCT Option: IEC 62053-24 Class 1 IEC 62053-23 Class 2 | 0.1kvarh |
| PF | ±0.5% | 0.001 |
| Frequency | ±0.02Hz | 0.01Hz |
| THD | IEC 61000-4-7 Class B | 0.001% |
| K-Factor | IEC 61000-4-7 Class B | 0.001 |
| Phase Angle | ±1° | 0.1° |
Standards of Compliance
Safety Requirements | |
|---|---|
| CE LVD 2014/35/EU | EN 61010-1: 2010 EN 61010-2-030: 2010 |
| cULusListed | EN61010-2-030:2010 UL61010-1,Ed.3 CAN/CSAC22.2NO.61010-1-12,Ed.3 UL61010-2-030,Ed.2 CSAC22.2NO.61010-2-030:18,Ed.2 UL61010-2-030,Ed.2 CSAC22.2NO.61010-2-201Ed.2 |
| Electrical Safety in Low Voltage Distribution Systems up to 1000Vac and 1500Vdc | IEC 61557-12:2018(PMD) |
| Insulation AC Voltage: 2kV@1 minute Insulation Resistance: >100MΩ Impulse Voltage: 6kV,1.2/50µs | IEC 62052-11: 2003 IEC 62053-21: 2003 |
Electromagnetic Compatibility CE EMC Directive 2014/30/EU(EN 61326:2013) | |
Immunity Tests | |
| Electrostatic Discharge | EN 61000-4-2:2009 |
| Radiated Fields | EN 61000-4-3:2006+A1:2008+A2:2010 |
| Fast Transients | EN 61000-4-4:2012 |
| Surges | EN 61000-4-5:2014+A1:2017 |
| Conducted Disturbances | EN 61000-4-6:2014 |
| Magnetic Fields | EN 61000-4-8:2010 |
| Voltage Dips and Interruptions | EN 61000-4-11:2004+A1:2017 |
| Ring Waves | EN 61000-4-12:2017 |
Emission Tests | |
| Limits and Methods of Measurement of Electromagnetic Disturbance Characteristics of Industrial,Scientific and Medical(ISM) Radio-Frequency Equipment | EN 55011:2016 |
| Limits and Methods of measurement of Radio Disturbance Characteristics of Information Technology Equipment | EN 55032:2015 |
| Limits for Harmonic Current Emissions for Equipment with Rated Current≤16A | EN 61000-3-2:2014 |
| Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment with Rated Current≤16A | EN 61000-3-3:2013 |
| Emission Standard for Residential, Commercial and Light-Industrial Environments | EN 61000-6-4:2007+A1:2011 |
Mechanical Tests | |
| Spring Hammer Test | IEC 62052-11:2003 |
| Vibration Test | IEC 62052-11:2003 |
| Shock Test | IEC 62052-11:2003 |
| Radiated Emissions | FCC 47CFR 15.109 ClassB |
| Conducted Emissions | FCC 47CFR 15.107 ClassB |
Wiring Mode
Wiring Mode | |
|---|---|
| 3P4W | 3-Phase 4-Wire (3P4W) Wye Direct Connection with 3CTs or 4CTs 3-Phase 4-Wire (3P4W) Wye with 3PTs and 3CTs or 4CTs |
| 3P3W | 3-Phase 3-Wire (3P3W) Direct Delta Connection With 3CTs 3-Phase 3-Wire (3P3W) Direct Delta Connection with 2CTs 3-Phase 3-Wire (3P3W) Delta with 2PTs and 3CTs 3-Phase 3-Wire (3P3W) Delta with 2PTs and 2CTs |
| 1P3W | 1-Phase 3-Wire (1P3W) Direct Connection with 2CTs |
| 1P2W L-N | 1-Phase 2-Wire, Uln (1P2W-Uln) Direct Connection with 1CT |
| 1P2W L-L | 1-Phase 2-Wire, Ull (1P2W-Ull) Direct Connection with 1CT |
| 3×1P | 3x1-Phase Direct Connection with 3CTs (Supported in Firmware V1.01.00 or later) |
