PMC-230 Single-Phase Multifunction Meter
Device Introduction
- The PMC-230 Single-Phase Multifunction Meter is CET's latest offer for the low voltage energy metering market featuring DIN rail mount, compact construction, 63A direct input with an internal Disconnect Relay compliant with the Australia National Electricity Rules (NER) schedule 7.5 for the ability to disconnect/re-connect from the supply.
- The PMC-230 also complies with the IEC 62053-21 Class 1 kWh Accuracy Standard and has received the certificate of approval from the National Measurement Institute (NMI) of Australia for compliance with the M6-1 Electricity Meters, Part 1: Metrological and Technical Requirements.
- The PMC-230 provides 4MB Log Memory for Data Recording, 3xDI for Status Monitoring or Pulse Counting, 1xLED and 1xSS Pulse Output for energy pulsing. Further, the standard RS485 port supporting Modbus RTU protocol with password protection allows the PMC-230 to become a vital component of an intelligent, multifunction monitoring solution for any secured Energy Management Systems.
Product Highlight
- Single-Phase Multifunction Meter
- IEC62053-21 Class 1 (63A Direct Input), NMI (Australia) Approval
- Internal 100A Disconnect Relay
- 35mm DIN Rail, 72x68x90mm
- B&W 8-digit LCD Display
- Harmonics, Demands & TOU, Energy Log and Event Log
- Modbus RTU,1xRS-485
- 3xDI, 1xSS Pulse Output
Typical Application
- DIN-Rail mount energy metering
- Industrial, Commercial and Utility Substation Metering
- Building, Factory and Process Automation
- Sub-metering and Cost Allocation
Related Products

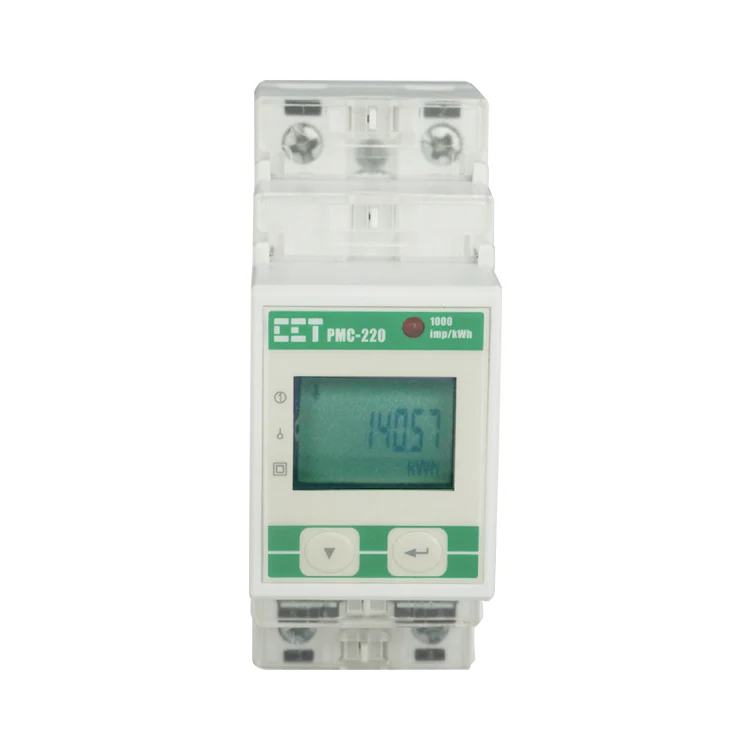

PMC-220 Single-Phase Multifunction Meter
PMC-340 Digital Three-Phase Energy Meter
PMC-350-C Three-Phase LoRaWAN DIN Energy Meter
Specification
Technical Specification
Measurement Inputs(L,N,L',N') | |
| Voltage (Un) | 220VAC | 230VAC | 240VAC |
| Overrange (% Un) | 120% | 115% | 110% |
| Range | 95-264VAC |
| Burden | < 3VA |
| Current (Ib/Imax) | 5A/63A |
| Starting Current | 0.4% Ib (20mA) |
| Minimum Current | 5% Ib (0.25A) |
| Burden | <3VA |
| Frequency | 50Hz/60Hz |
| Power Supply | Self-powered from 95 to 264VAC |
| Maximum Wire Size | 25mm 2 (4AWG) |
| Torque for L,N Terminals | 2.5 N.m |
Disconnect Relay | |
| Rated Load (Resistive) | 100A@250VAC |
| Response Time | 20ms |
| Short-time Over currents | 7000A (-10% to +0%) @60ms |
| Service Life (Mech./Elec.) | 100k/5k Operations |
| Rated Making Capacity @1.15Un and PF=1 | 63A Max. |
| Rated Breaking Capacity @ 1.15Un and PF=1 | 63A Max. |
| Dielectric (AC Voltage) | 4kV@1minute(Contact to Coil) 2kV@1minute(Contact to Contact) |
Insulation Resistance | 1000MΩ/500VDC |
SSR Pulse Output(E+,E-) | |
Type | Optically Isolated Solid State Relay |
Max.Load Voltage | 80VDC |
| Max.Forward Current | 50mA |
| Maximum Wire Size | 1.5 mm 2 (16AWG) |
| Torque for Terminals | 0.45 N.m |
Communications(D+,D-) | |
RS-485 (Modbus RTU) | Optically isolated @ 5kVrms |
Maximum Wire Size | 1.5 mm 2 (16AWG) |
Torque for RS-485 Terminals | 0.45 N.m |
| Communication port Protocol | Modbus RTU |
| RS-485 Port | 1 |
Environmental Conditions | |
Operating Temp. | -25 °C to + 70°C |
Storage Temp. | -40 °C to + 85°C |
Humidity | 5% to 95% non-condensing |
Atmospheric Pressure | 70 kPa to 106 kPa |
Pollution Degree | 2 |
Mechanical Characteristics | |
Unit Dimensions | 72(W)x68(D)x90(H)mm |
| Mounting | DIN-Rail Mounting |
IP Rating | IP51(Front), IP30(Body) |
Features Summary | |
Display (Backlit) | B&W (No Backlit) |
Type of Measurement | Voltage Current Frequency Active Power Reactive Power Apparent Power Power Factor kWh lmport/Export kvarh Import/Export kVAh Total |
Power Quality | THD Voltage & Current |
Battery-backed Real-time Clock | √ |
Demands | Present Demands and Max.Demands for This Month & Last Month |
Multi-Tariff TOU capability | Two TOU schedules, each providing: 4 Seasons 30 Holidays 12 Daily Profiles, each with 8 Periods in 15-minute interval 4 Tariffs |
Disconnect Relay (Internal) | √ |
Logs | |
Monthly Energy Log | 12 months |
Data Recorder | 1 Data Recorders Max. Recording Depth @ 65535 records |
SOE Log | 32 entries |
On-board Log Memory | 4MB |
Accuracy
| Parameters | Accuracy | Resolution |
|---|---|---|
| Voltage | ±0.5% | 0.1V |
| Current | ±0.5% | 0.001A |
| P,Q,S | ±1.0% | 0.001W/kvar/kVA |
| kWh | IEC 62053-21 Class 1 | 0.01kWh |
| kvarh | IEC 62053-23 Class 2 | 0.01kvarh |
| PF | ±1.0% | 0.001 |
| Frequency | ±0.02Hz | 0.01Hz |
Standards of Compliance
Safety Requirements | |
|---|---|
| CE LVD 2014/35/EU | EN 61010-1: 2010 EN 61010-2-030: 2010 |
| Electrical Safety in Low Voltage Distribution Systems up to 1000Vac and 1500Vdc | IEC 61557-12:2018(PMD) |
| Insulation AC Voltage Impulse Voltags | IEC 62052-11: 2003 IEC 62053-21: 2003 NMI M6-1 4kV @ 1 minute 12kV+0%, -15%, 1.2/50µs (NMI M6-1) |
Electromagnetic Compatibility EMC 2014/30/EU(EN 61326:2013) | |
| Electrostatic Discharge | EN 61000-4-2:2009 |
| Radiated Fields | EN 61000-4-3:2006+A1:2008+A2:2010 |
| Fast Transients | EN 61000-4-4:2012 |
| Surges | EN 61000-4-5:2014+A1:2017 |
| Conducted Disturbances | EN 61000-4-6:2014 |
| Magnetic Fields | EN 61000-4-8:2010 |
| Voltage Dips and Interruptions | EN 61000-4-11:2004+A1:2017 |
Mechanical Tests | |
| Spring Hammer Test | IEC 62052-11:2003 |
| Vibration Test | IEC 62052-11:2003 |
| Shock Test | IEC 62052-11:2003 |
Revenue Metering Approval | |
| NMI M6-1 of Australia | Approval Mark: NMI 14/2/109 UL Ref. # R4789222180_NMI |
